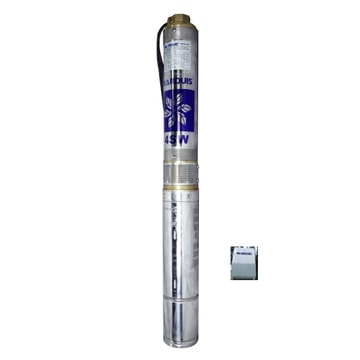

MARQUIS 4″ Submersible Pump- 4SWm 4-10

-4%
4SWm 6-23, Marquis Submersible Water Pump, Marquis Pump,

MARQUIS 4″ Submersible Pump- 4SWm 4-10

SKU: 4SWm 4-10 Categories: , , , Tags: , , ,

৳ 15,100.00

MARQUIS BOREWELL SUBMERSIBLE PUMP

  • HP: 1.00
  • KW: 0.75
  • Phase: Single
  • Delivery Dia: 1 ¼ inch
  • Body Dia: 4 inch
  • Head Range: 70-23 meters
  • Flow: 30-100 Liter/Min

FEATURES:

  • Rewindable motor
  • Equipped with start control box
  • 30 meter free Power cable
  • Pumps are designed by casing stressed
  • Curve tolerance according to ISO 9906

20 in stock

Add to Wishlist
Add to Wishlist

Description





Limits of Use:

-Maximum Liquid Temperature: +35°c
-Maximum sand content: 0.25%
-Power: 50Hz, Single phase
Application:

-Be used to pump the water for the house or industrial use from the well.



Components & Materials:
Pump external casing: Stainless Steel AISI 304
Delivery Casing: Cast-Cu ASTM C85500
Suction Lantern: Cast-Cu ASTM C85500
Diffuser: Plastic PC
Impeller: Plastic POM
Shaft: Stainless Steel AISI 304
Shaft Coupling: Stainless Steel AISI 304
Wear Ring: Stainless Steel AISI 304
Motor External Casing: Stainless Steel AISI 304
Mechanical Seal: Graphite-Ceramic/TC
Bearing: NSK brand
Seal Lubricant Oil: Oil for food machinery and pharmaceutic use.

Additional information

Weight 15 kg
Dimensions 49.2 × 4.7 × 4.7 in
