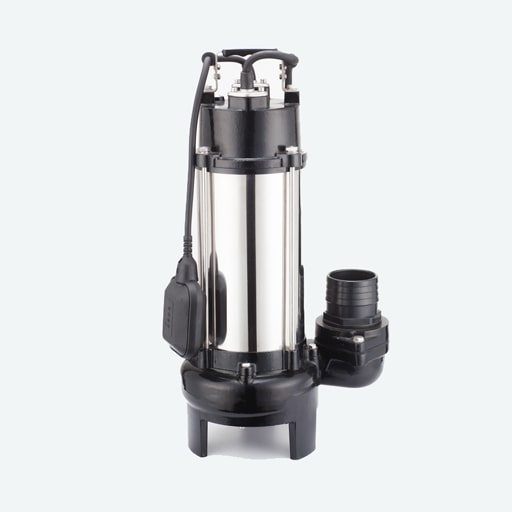

MARQUIS Cutter Drainage Submersible for Septic Tank & Pumping Fibers, V 2200 DF

-5%

MARQUIS Cutter Drainage Submersible for Septic Tank & Pumping Fibers, V 2200 DF

SKU: V 2200 DF Categories: , , Tags: , ,

Original price was: ৳ 31,500.00.Current price is: ৳ 30,000.00.

Technical Specifications

  • Power: 3.00HP or 2.20KW
  • Phase: ~1 or 220V
  • Water Flow: 50-550 LPM
  • Head: 16.3-4.7 meters
  • Solid Passage: 30mm
  • Delivery Diameter: 3″

WHAT’S IN THE PACKAGE – Pump, Motor, ~27m Power Cable, Control Box, Warranty Card, User Manual, etc.

Out of stock

Add to Wishlist
Add to Wishlist

Description

Limits of Use:

-Liquid Temperature: -10°c to +40°c
-Immersion depth up to 5m
-Minimum immersion 240 mm from pump base.
-Passage of suspended solids up to Ø2mm
-Suction level: 40mm above the ground level
-Power: 50Hz, Single phase 220v, up and down 10%
Application:
-Suitable for draining domestic water, a construction site with suspended 30 mm solid.
Components & Materials:
-Pump body: Aluminum, with the threaded opening.
-Suction grid: Stainless steel AISI 304
-Motor frame: Stainless Steel AISI 304
-Impeller: CI
-Double Mechanical Seal: Mechanical seal (Ceramic-Graphite) with oil barrier chamber and inner lip seal to protect the sealing in the event of dry running.
-Bearing: Z4 Class
-Shaft: Stainless Steel
-Insulation: Class F
-Protection: IP68
-Motor: Submersible asynchronous single-phase for continuous duty.
Type code ‘F’ means pump equipped with float switch.

Additional information

Weight 28 kg
Dimensions 23 × 14 × 10 in
