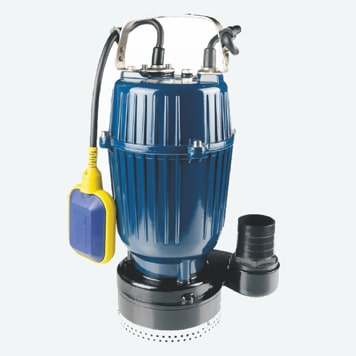

MARQUIS Drainage Submersible For Slightly Dirty Water- SA 1100F

৳ 15,675.00

MARQUIS Drainage SubmersiblePump for Slightly Dirty Water

  • Suitable for draining domestic water, a construction site with suspended 30mm solid.
  • HP:1.50
  • KW: 1.10
  • Phase: Single
  • Delivery Dia: 3 inch
  • Head Range: 8.9-3.8 meters
  • Flow: 50-700 Liter/Min
  • Solid Passage: 2 mm

19 in stock

Add to Wishlist
Add to Wishlist

Description

Limits of Use:

-Liquid Temperature: -10°c to +40°c
-Immersion depth up to 5m
-Minimum immersion 240 mm from pump base.
-Passage of suspended solids up to Ø2mm
-Suction level: 40mm above the ground level
-Power: 50Hz, Single phase 220v, up and down 10%
Application:
-Suitable for draining domestic water, a construction site with suspended 30 mm solid.
Components & Materials:
-Pump body: Aluminum, with the threaded opening.
-Suction grid: Stainless steel AISI 304
-Motor frame: Stainless Steel AISI 304
-Impeller: CI
-Double Mechanical Seal: Mechanical seal (Ceramic-Graphite) with oil barrier chamber and inner lip seal to protect the sealing in the event of dry running.
-Bearing: Z4 Class
-Shaft: Stainless Steel
-Insulation: Class F
-Protection: IP68
-Motor: Submersible asynchronous single-phase for continuous duty.
Type code ‘F’ means pump equipped with float switch.

Additional information

Weight 21 kg
Dimensions 13 × 9 × 19 in
