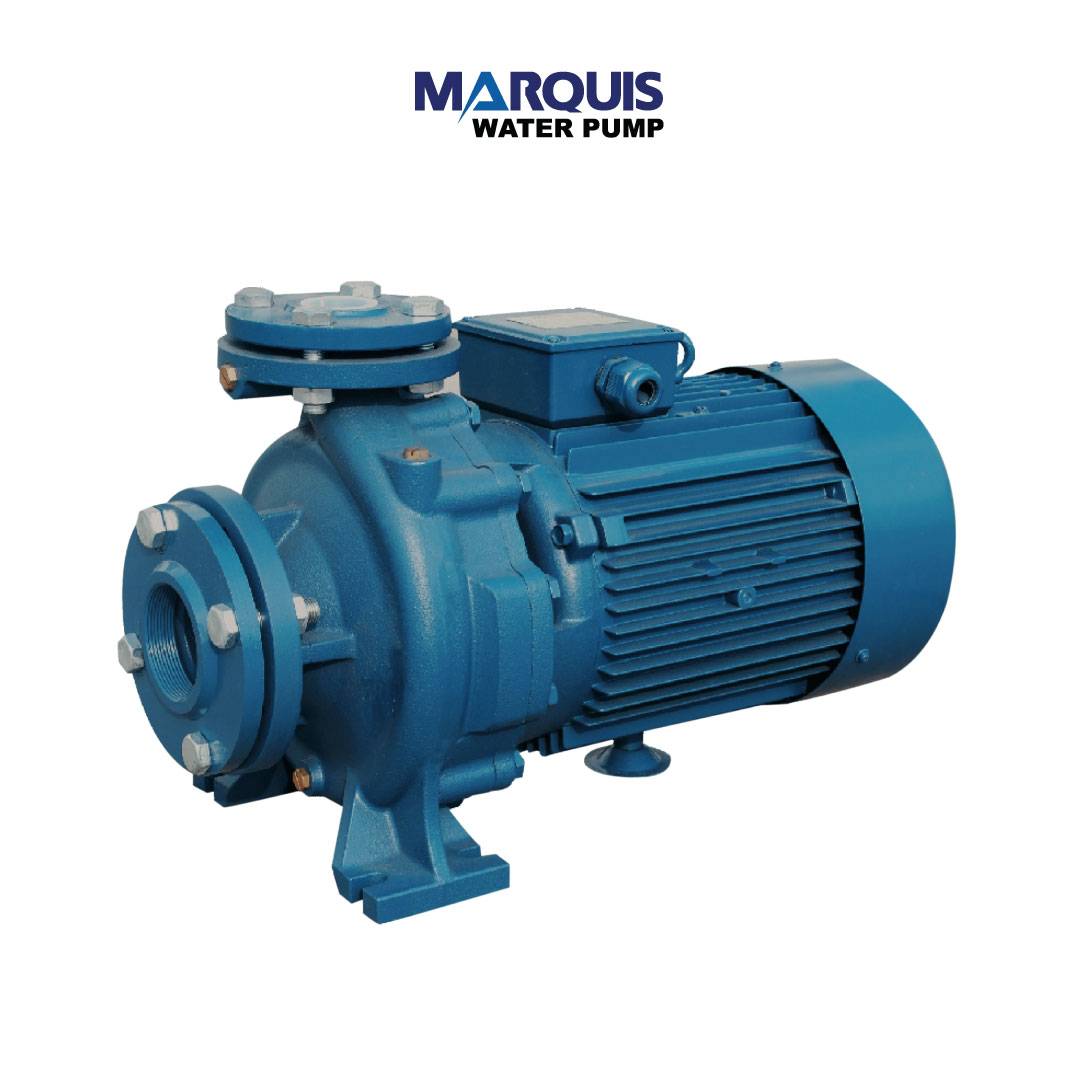

MARQUIS Industrial Centrifugal Pump, MF 50/160A

৳ 68,000.00

MARQUIS Industrial Centrifugal Pump

  • Power: 10HP or 7.5KW
  • Phase: ~3
  • Suction Dia: 2.5-inch
  • Delivery Dia: 2-inch
  • Head Range: 34-28 meters
  • Water Flow: 100-900 LPM

19 in stock

Add to Wishlist
Add to Wishlist

Description

Limits of Use

  • Liquid Temperature: -10c to +60c
  • Manometric Suction Lift: 7m
  • pH Value of liquid: 6.5-8.5
  • Power: 50Hz, Single phase 220v, up and down 10%

Features

  • Compact design with an attractive appearance.
  • The centrifugal pump has the highest efficiency compared to peripheral and JET pumps.
  • Due to adopting the cast
  • A built-in thermal protector will prevent the motor from overheating.

Application

  • Be used to deliver clean water without abrasive particles.
  • Be used to clean or cool the machine tools with high pressure.
  • Be used to pump the water for house use, or industrial use from the well or tank.
  • Be used to boost the water in the pressurization system.

Components & Materials

  • Pump body: Cast Iron
  • Impeller: Brass
  • Mechanical Seal: Graphite-Ceramic-NBR
  • Bearing: Z4 Class
  • Shaft: Stainless Steel
  • Insulation: Class B
  • Protection: IP44

Additional information

Weight 91.7 kg
Dimensions 27 × 14.5 × 18 in
Power

10HP or 7.5KW

Phase

~3 or 440V

Color

Blue

Brand

Marquis

Pump Body

Cast Iron

Pump Body Cover

Cast Iron

Impeller

Brass

Motor Shaft

Stainless Steel AISI 420

Mechanical Seal

Ceramic and Graphite

Electric Motor

Marquis Electric Motor

Protection

IP44

Bearing

Z4 Class
