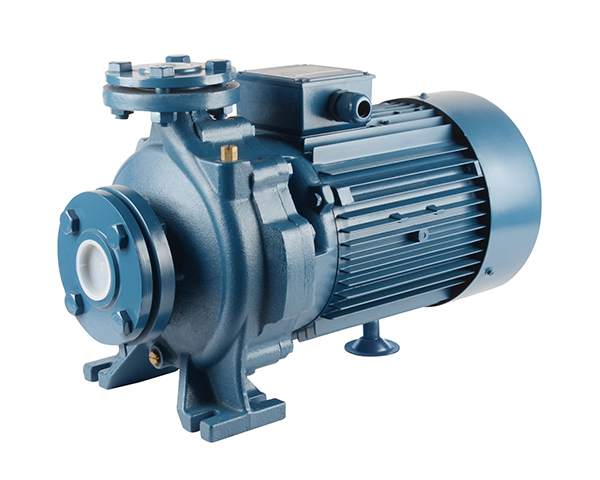

MARQUIS Irrigation Centrifugal Pump- MHF/5B
৳ 9,350.00
- MARQUIS AGRICULTURAL IRRIGATION PUMP
- HP: 1.00
- KW: 0.75
- Phase: Single
- Suction Dia: 2 inch
- Delivery Dia: 2 inch
- Head Range:13-5 meter
- Flow: 100-500Liter/Min
50 in stock
Description
Limits of Use:
-Liquid Temperature: -10c to +60c
-Manometric Suction Lift: 7m
-pH Value of liquid: 6.5-8.5
-Power: 50Hz, Single phase
Features:
-The special design on the impeller allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging.
-The special design on the pump casing and impeller to assure relatively high flow.
-Wide range voltage of 180-240V is allowed for this pump, very suitable for use in irrigation.
Application:
-Be used to deliver the water in agriculture, garden, mining, etc.
-Be used to deliver the water from the canals, rivers, reservoirs for industrial use.
-Be used to deliver the water in the sewage treatment system.
Components & Materials:
Pump body: Cast Iron with Electrophoretic paint.
Impeller: Brass
Mechanical Seal: Graphite-Ceramic-NBR
Bearing: Z4 Class
Shaft: Stainless Steel
Additional information
Weight | 16 kg |
---|---|
Dimensions | 12.6 × 9 × 11.5 in |
Color | Blue |
Brand | Marquis |
