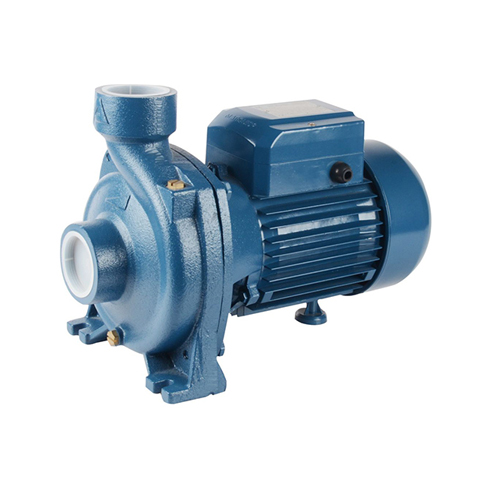

Irrigation Centrifugal Pump-MHF/6C

৳ 15,700.00

  • HP-1.50, KW-1.10.
  • Phase: Single.
  • Head: 10-1.7 meter.
  • Flow: 250-900 liter/min.
  • Suction Dia: 3″, Delivery Dia: 3″.
  • Manometic Suction Lift: 7 meter.
  • Suitable for Irrigation & Agriculture purposes.

10 in stock

Add to Wishlist
Add to Wishlist

Description





Limits of Use:

-Liquid Temperature: -10c to +60c
-Manometric Suction Lift: 7m
-pH Value of liquid: 6.5-8.5
-Power: 50Hz, Single phase
Features:
-The special design on the impeller allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging.
-The special design on the pump casing and impeller to assure relatively high flow.
-Wide range voltage 180-240V is allowed for this pump, very suitable for the use in irrigation.
Application:
-Be used to delivery the water in agriculture, garden, mining etc.
-Be used to delivery the water from the canals, rivers, resorvoirs for the industrial use.
-Be used to delivery the water in sewage treatment system.
Components & Materials:
Pump body: Cast Iron with Electrophoretic paint.
Impeller: Brass
Mechanical Seal: Graphite-Ceramic-NBR
Bearing: Z4 Class
Shaft: Stainless Steel

Additional information

Weight 26.5 kg
Dimensions 18 × 11 × 14 in
Color

Blue

Brand

Marquis
