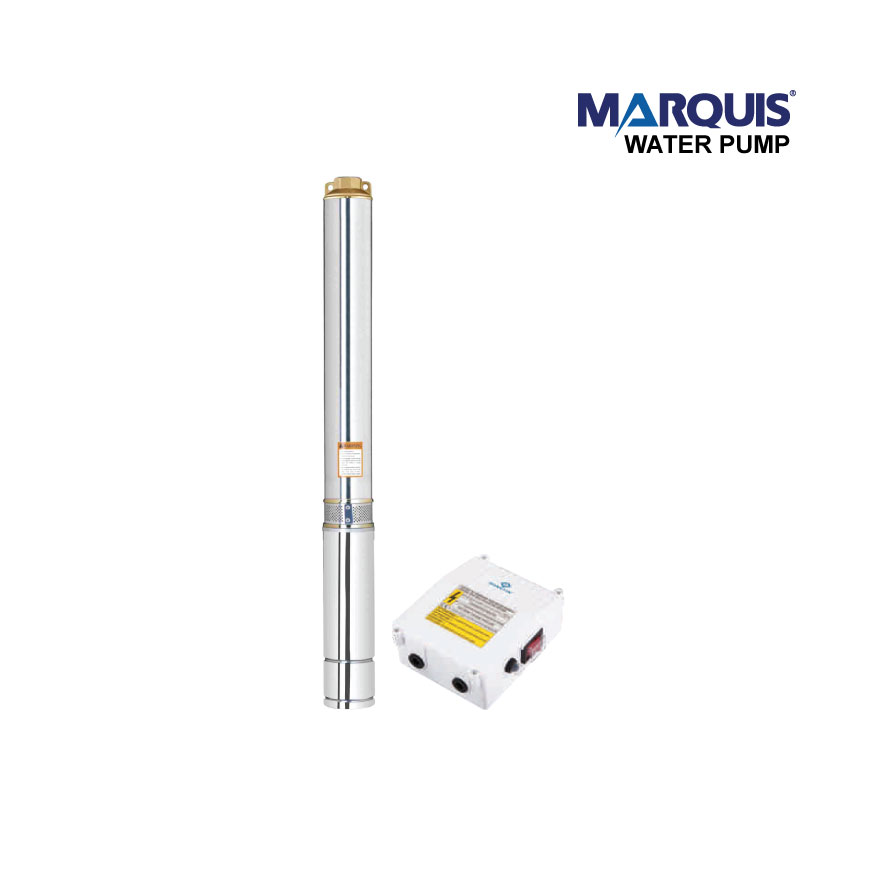

Marquis 5″-Borehole 4HP Submersible Pump, 5SWm 30-4

Original price was: ৳ 42,000.00.Current price is: ৳ 39,900.00.

Technical Specifications

  • Power: 4.00HP or 3.00KW
  • Phase: ~1 or 220V
  • Water Flow: 100-700 LPM
  • Head: 38-12 meters
  • Pump Diameter: 5″
  • Delivery Diameter: 3″

WHAT’S IN THE PACKAGE – Pump, Motor, ~27m Power Cable, Control Box, Warranty Card, User Manual, etc.


Out of stock

Add to Wishlist
Add to Wishlist

Description

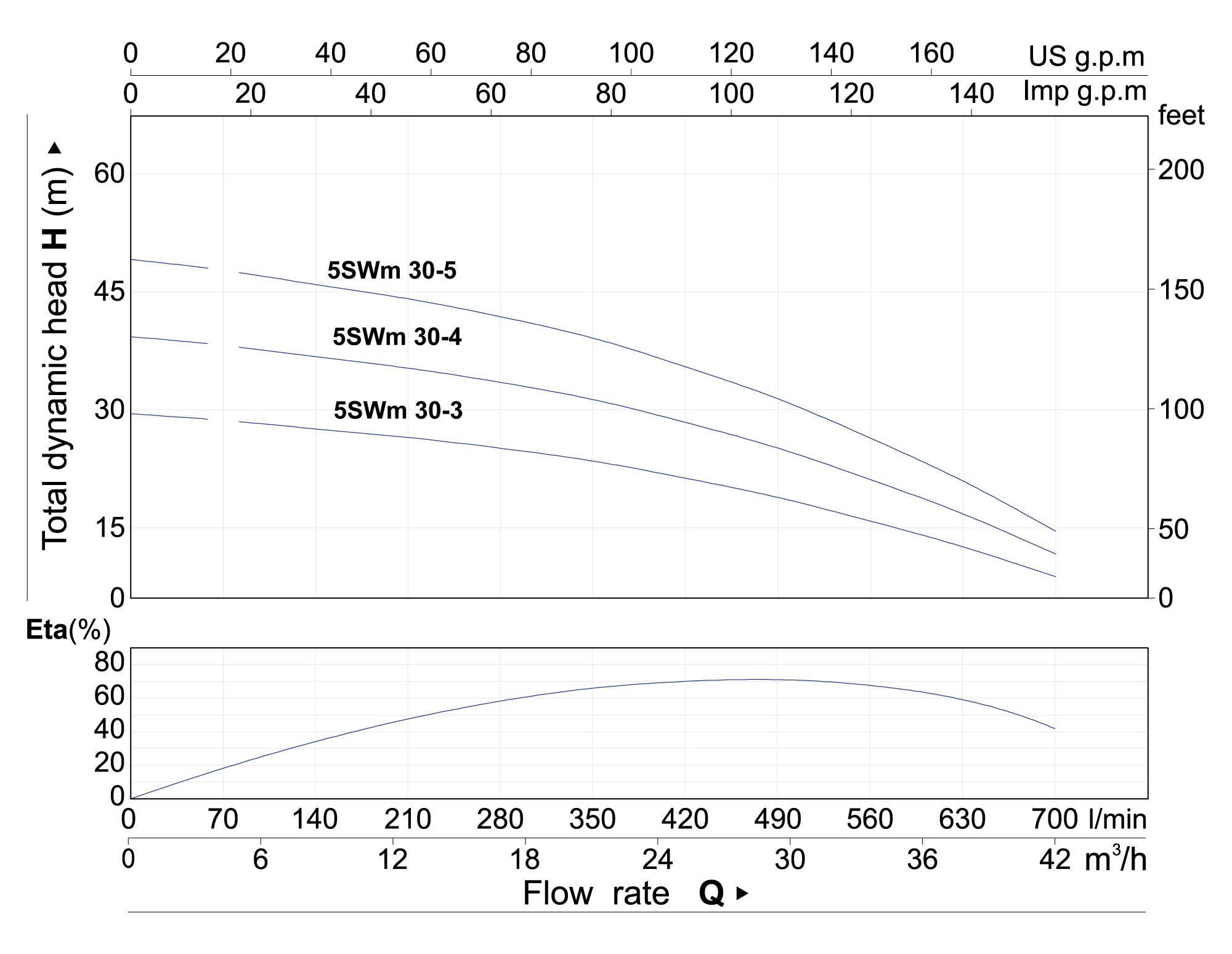

Performance Data



m3/hr 0 6 12 18 24 30 36 42
Lit/min 0 100 200 300 400 500 600 700
Head (m)
39 38 35 33 29 25 19 12

Marquis 5SWm 30-3, Marquis 5SWm 30-4 , Marquis 5SWm 30-5

Applications

  • For water supply from wells or reservoirs
  • For domestic use
  • For civil and industrial applications
  • For garden use and irrigation



Operating Conditions

  • Maximum fluid temperature up to +35C
  • Maximum sand content 0.25%
  • Maximum good diameter 6″



Motor and Pump

  • Rewindable motor
  • Single Phase or 220-240V/50Hz
  • Equip with a start control box or digital auto-control box
  • NEMA dimension standards
  • Curve tolerance according to ISO 9906



Options on Request

  • Special mechanical seal
  • Other voltages or frequency 60Hz



Warranty

24 (twenty-four) months service warranty. The first 12 (times) months were on a motor warranty and two years of service warranty.

Additional information

Weight 28.0 kg
Dimensions 50 × 6.5 × 6.5 in
