-5%

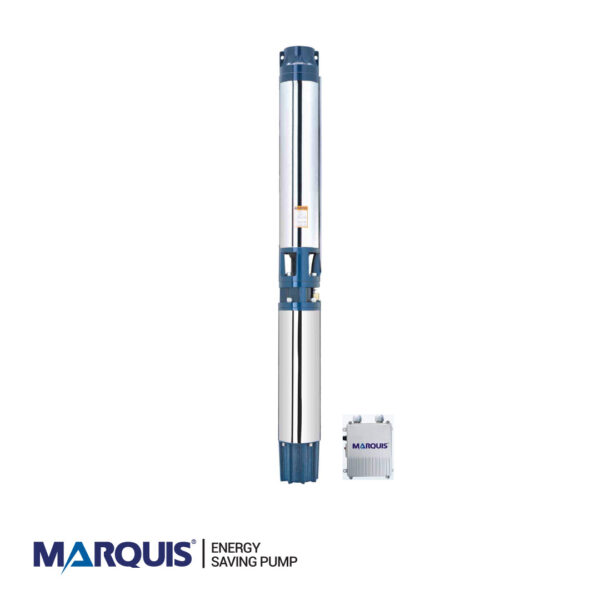

Marquis 6″ Borehole 5.5HP Submersible Pump, 6SWRm 45-3
৳ 52,300.00
- Model: 6SWRm 45-3
- Power: 5.5HP or 4.0KW
- Phase: ~1
- Stages: 3
- Water Flow: 100-1000 Lit/min
- Head: 41-11 meter
- Pump Diameter: 6″
- Delivery Diameter: 4″
| WHAT’S IN THE BOX | Pump, Motor, ~30m Power Cable, Control Box, Warranty Card, User Manual, etc. |
7 in stock
Description

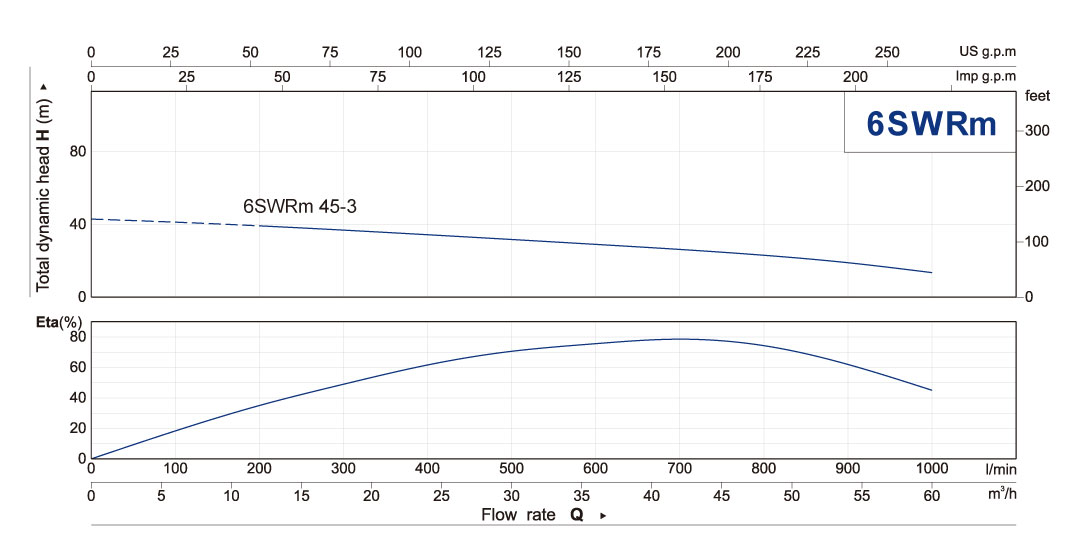

Performance Data
| m3/hr | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 |
| Lit/min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Head (m) |
29 | 28 | 26 | 24 | 22 | 21 | 159 | 17 | 15 | 13 | 9 |
Applications
- For water supply from wells or reservoirs
- For domestic use
- For civil and industrial applications
- For garden use and irrigation
Operating Conditions
- Maximum fluid temperature up to +35C
- Maximum sand content 0.25%
- Maximum good diameter 6″
Motor and Pump
- Rewindable motor
- Single Phase or 220-240V/50Hz
- Equip with a start control box or digital auto-control box
- NEMA dimension standards
- Curve tolerance according to ISO 9906
Options on Request
- Special mechanical seal
- Other voltages or frequency 60Hz
Warranty
24 (twenty-four) months service warranty. Where the first 12 (times) months on motor warranty and two years service warranty.
Additional information
| Weight | 62.3 kg |
|---|---|
| Dimensions | 24.54 × 7 × 8 in |
Be the first to review “Marquis 6″ Borehole 5.5HP Submersible Pump, 6SWRm 45-3”
Related products
-
- -3%
MARQUIS Automatic Electric Pump Controller- EC-1
- ৳ 3,200.00
-
- Out of Stock-4%
MARQUIS Peripheral Pump-Self Priming- MQS 128-2
- ৳ 4,800.00
-
-
- -4%

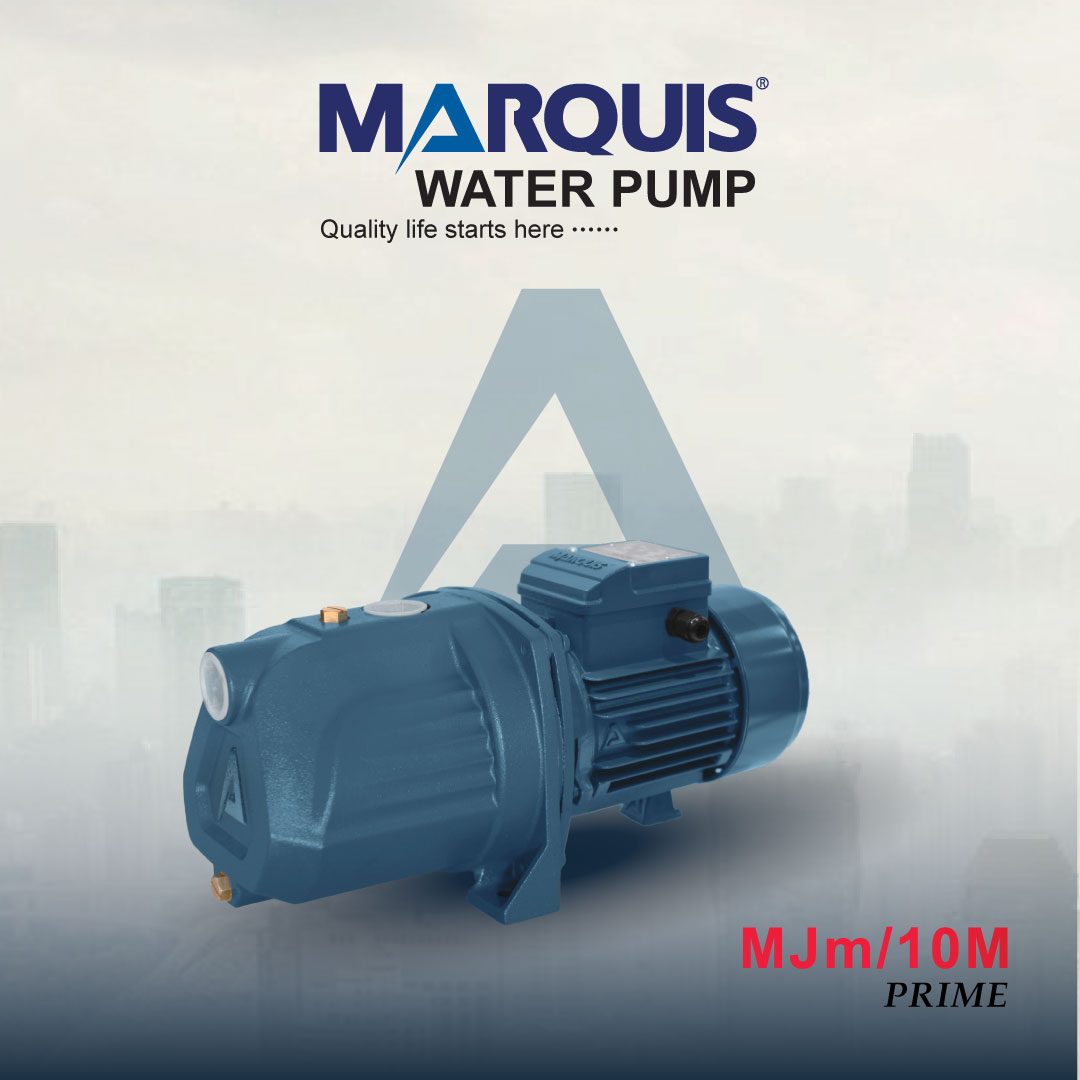

MARQUIS Self Priming Jet Pump- MJm 102
