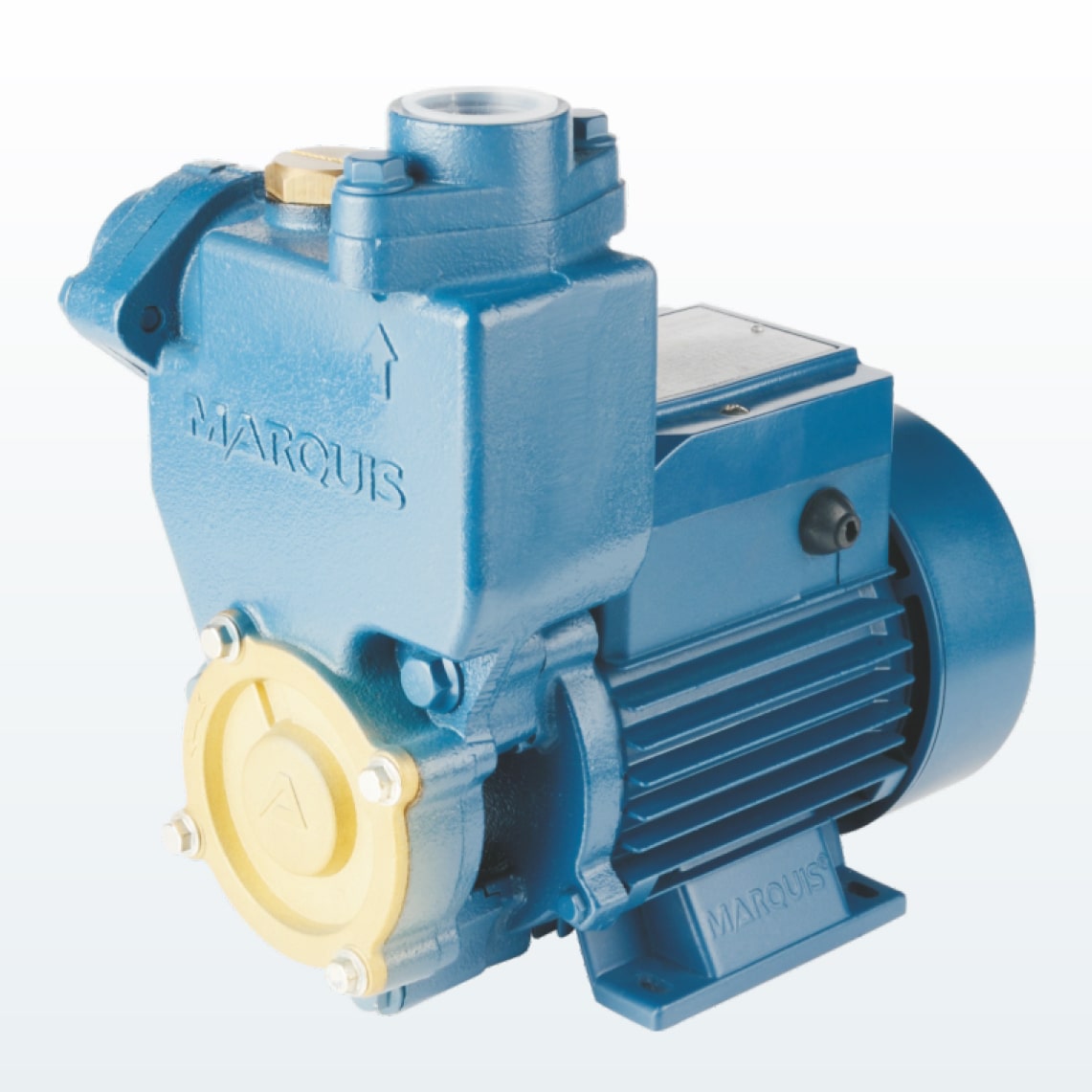

MARQUIS Peripheral Pump-Self Priming- MQS 128-2

-4%

MARQUIS Peripheral Pump-Self Priming- MQS 128-2

SKU: MQS-128-2 Categories: , , Tags: , ,

৳ 4,800.00

  • HP-0.5, KW-0.37
  • Phase: Single
  • Head: 28-10 meter
  • Flow: 10-25 liter/min
  • Suction Dia: 1″, Delivery Dia: 1″
  • Manometric Suction Lift: 8 meter
  • Suitable for lifting water from Tubewell/Reservoir to 2nd-floor building, domestic & small industrial uses purposes.

Out of stock

Add to Wishlist
Add to Wishlist

Description

Limits of Use:

-Liquid Temperature: -10c to +60c
-Manometric Suction Lift: 8m
-pH Value of liquid: 6.5-8.5
-Power: 50Hz, Single phase 220v, up and down 10%
Features:

-Compact design with attractive appearance.

-Can be used for gas-liquid mixed delivery.

-Be used with a check valve to prevent backflow of liquid.

-Due to the performance ensured by the small gap between the impeller and the pump casing, therefore, cannot be used to deliver liquid containing solid particles.

Application:

Be used to deliver clean water without abrasive particles.

Be used to clean or cool the machine tools with high pressure.

Be used to pump the water for industrial or house use from the well or tank.

Be used to boost the water in the pressurization system.

Components & Materials:
Pump body: Cast Iron with front brass insert
Impeller: Brass
Mechanical Seal: Graphite-Ceramic-NBR
Bearing: Z4 Class
Shaft: Stainless Steel
Insulation: Class B
Protection: IP44

Additional information

Weight 5 kg
Dimensions 12 × 5.7 × 6.88 in
Color

Blue
Brand

Marquis
